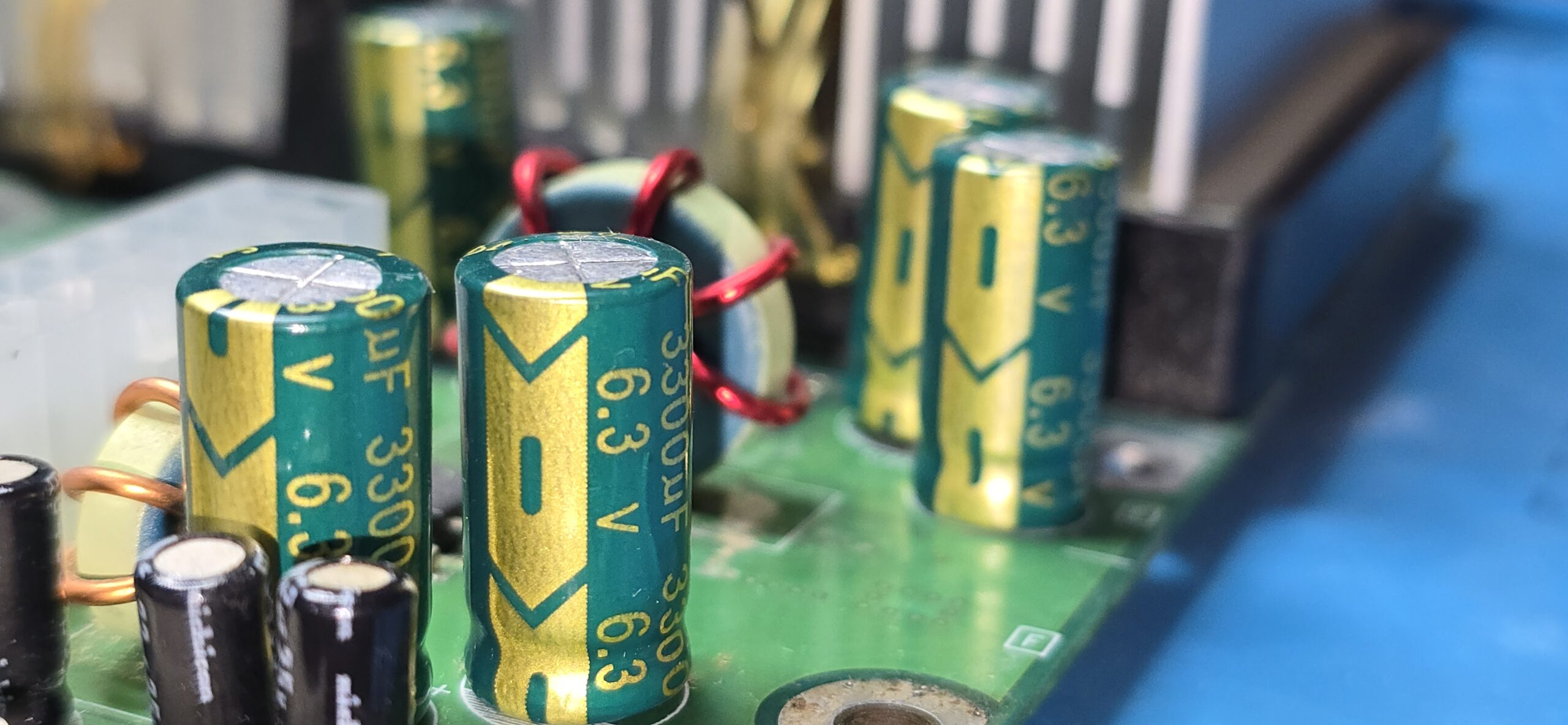

Xbox Original Replacement Capacitor Kit (Primary caps only all models)

Choose a primary capacitor kit for your Xbox.

All models include Eaton Branded 1F 2.7v super-clock capacitor (sourced via Digikey)

No kits include the smaller or surface mount capacitors (we do not currently stock these), as these fail a lot less.

1.0: GPU Fan (if stock), separate controller PCB at the front with black ports, single row PSU pins, Conexant chip (behind smaller heatsink).
1.1: No controller PCB with white ports, single row PSU pins, Conexant chip (behind smaller heatsink).
1.2/1.3: Dual row PSU block, Conexant chip (behind smaller heatsink), LPC pin 3 disconnected.
1.4/1.5: Dual row PSU block, Focus chip (behind smaller heatsink), LPC pins 2 & 9 disconnected on 1.5.
1.6/1.6b: Xcalibur encoder chip (behind smaller heatsink), RAM pads missing, Xyclops chip near clock, relocated Gold Clock Cap.
