R3DUX CE (Xecuter 3 replacement) Modchip Kit

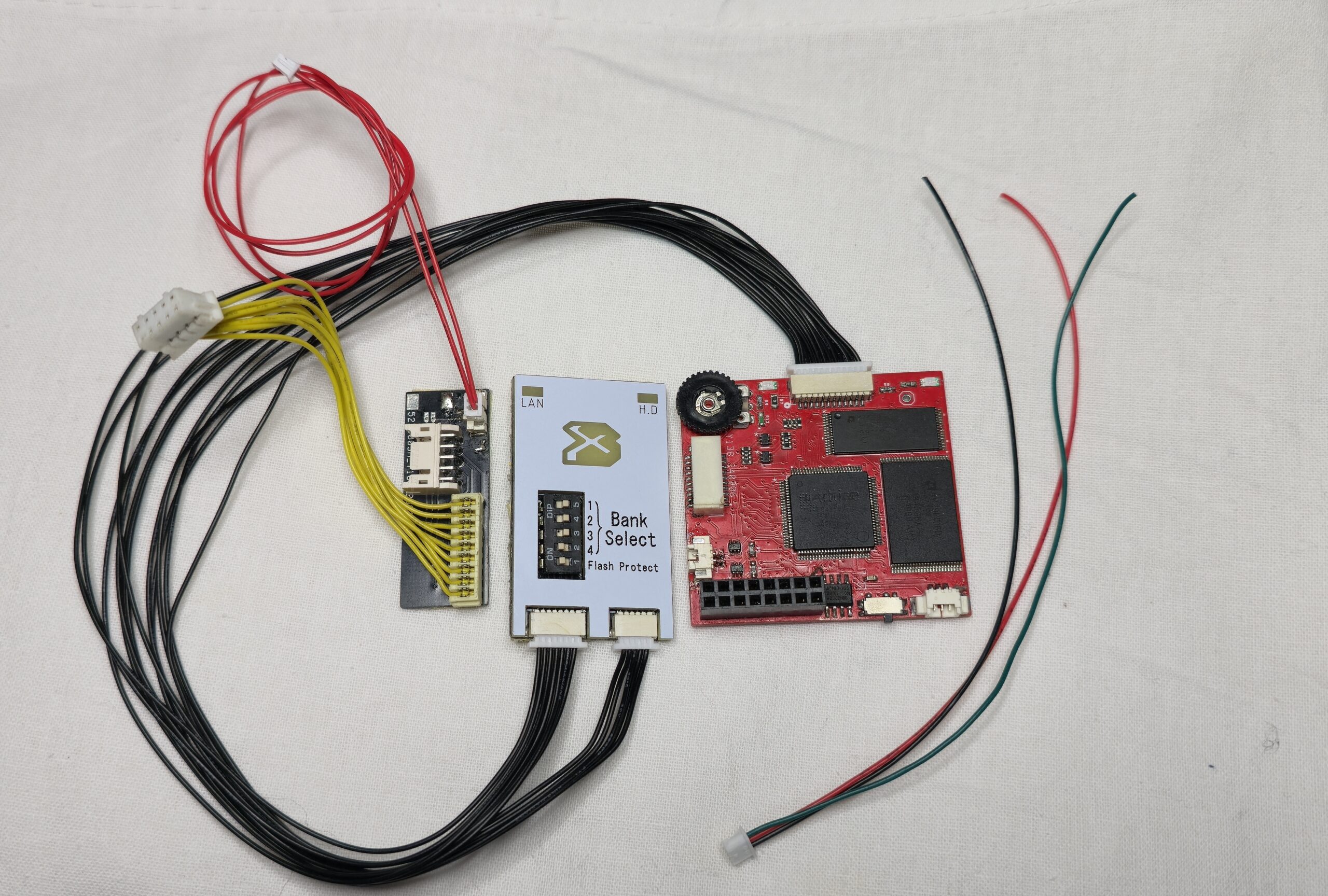

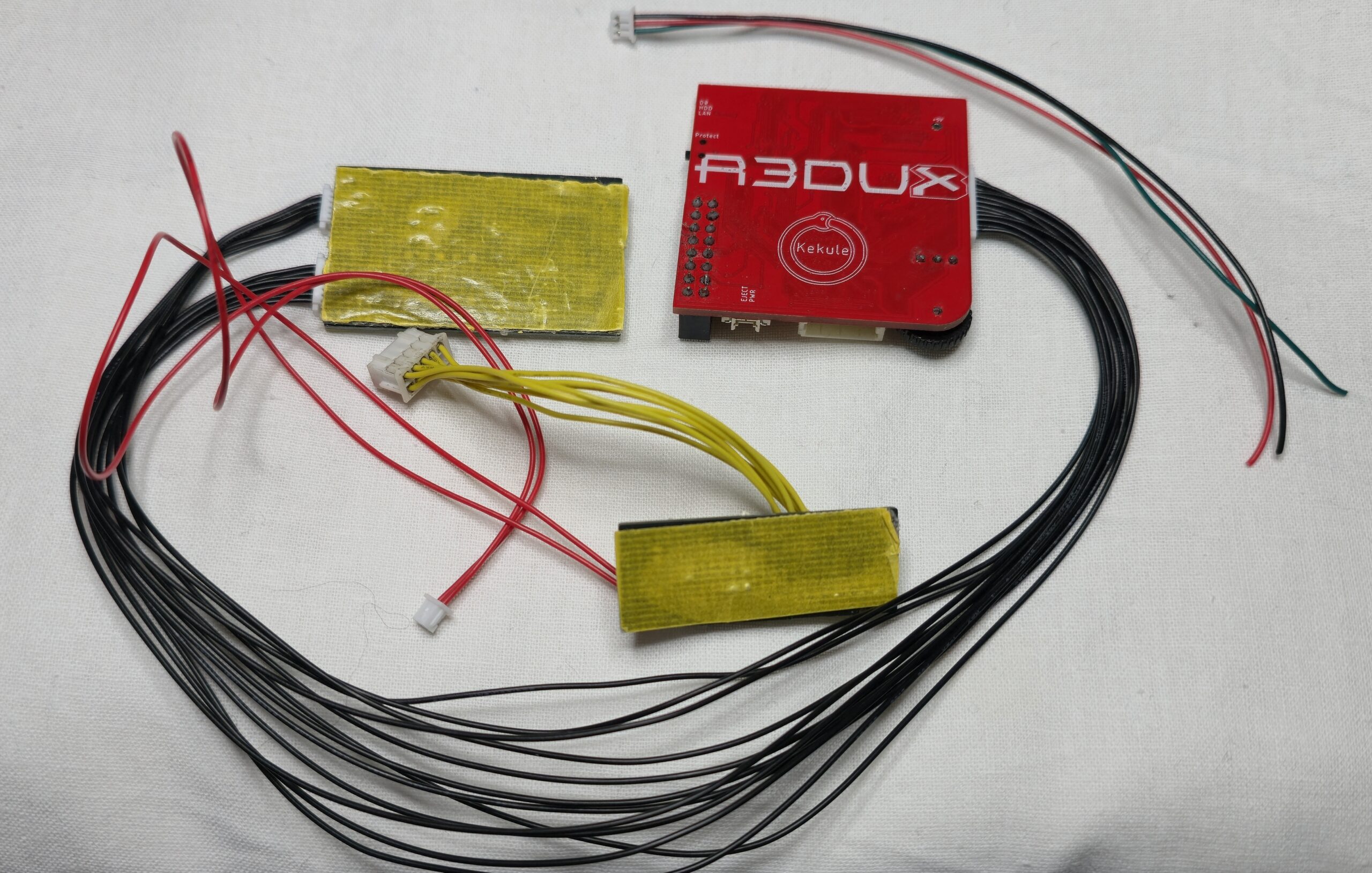

R3DUX CE Kit comprises of:-

1x Red R3DUX modchip

1x White/Gold CE Bank Switch Panel

1x Controller Board

1x Wiring Loom / 1x D0, HDD and Lan cable (MUST be replaced as it’s different to X3)

1x Set of instructions and pre-flashed bank list

Already loaded with Prometheos / XBlast / Cerbios 3.1 / Cerbios 2.4.2 / EvoX

This is an open source recreation of one of the most well known Original Xbox LPC memory/IO device created by Team Xecuter, the X3/X3-CE.

The VHDL is 100% compatible with All the original TX software including Flashbios and LiveConfig. This allows loading user BIOS binaries and some basic Xbox tools (EEPROM Backup/modification, Hard drive Rebuilding, Locking, Unlocking, FTP access, as well as customizing the colors of the boot animation).

The VHDL written by Team Xecuter was never released and the CPLD is read protected so it is not trivial to extract the bitstream (and they mislabelled the CPLD to make it even more difficult)

While the VHDL is most likely quite different that what was written originally for the X3 my VHDL implementation is fully compatible with all the features of the original chip.
